10 Key Parameters for Precise Selection of Truck Unloader Models

In the bulk material handling industry, truck unloaders serve as the "critical gateway" of material conveying systems, with their selection directly impacting operational efficiency in ports, mining operations, cement plants and other scenarios. Statistics show that improper selection of unloading equipment causes $1.2 billion in material losses annually worldwide, while accounting for 23% of unplanned downtime in the industry. As an EPC solution provider serving over 50 countries/regions, ZOOMRY's 20 years of project experience demonstrates that precise model selection can improve operational efficiency by 15%-40% while reducing total lifecycle costs by over 30%.

I. Processing Capacity

Processing capacity, measured in tons per hour (TPH), is the primary performance metric for truck unloaders. ZOOMRY's ZRLS-TU series offers a wide range of 200-1800 TPH, covering all scenarios from small sand quarries to billion-ton ports.

Selection Recommendations

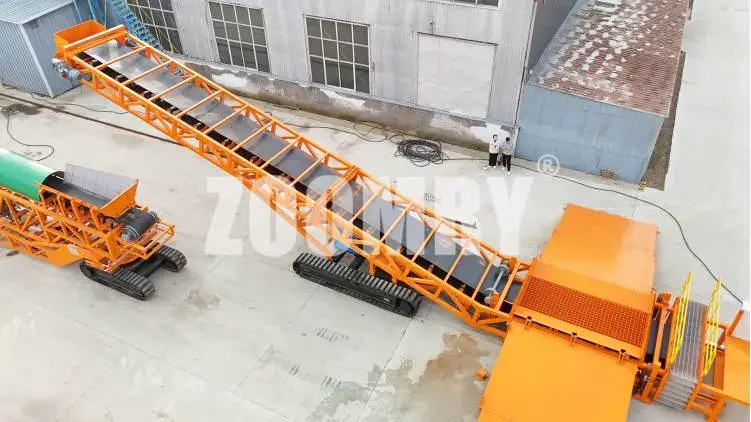

• Mining applications: Typically facing complex terrain, 24/7 continuous operation and high-load requirements. Crawler chassis provide superior ground adhesion and stability for muddy conditions and slopes (up to 15° inclination), with modular design supporting rapid expansion to multi-stage conveying systems. Recommended model: ZRLD-TU1800 Crawler Truck Unloader (600-1800TPH) for high-intensity continuous operation.

• Port operations: Requiring strict mobility and space utilization. Wheeled ZRLS-TU1400 (200-1000TPH) with ≤6.5m turning radius and 10-minute relocation capability efficiently handles vessel berthing windows. Patented folding hopper (8.2×4.5m deployed) accommodates Panamax bulk carrier hatch layouts.

• Calculation formula: TPH=3600×Belt speed(m/s)×Material cross-section(m²)×Bulk density(t/m³)×Efficiency factor(0.8-0.9)

• Example: Cement plant processing limestone (density 1.5t/m³) with 1600mm belt width at 2.5m/s:

• Cross-section=Effective width×Layer height×Trough factor=1.6m×0.3m×0.9=0.432m²
• TPH=3600×2.5×0.432×1.5×0.85=4957 (theoretical). When theoretical value exceeds 2.5×rated capacity, dual-line solutions become economically advantageous.
• Practical selection: ZRLD-TU1800 (1800TPH rated) in dual-line configuration achieves requirements with 31% energy savings versus single high-power solutions.

II. Belt Width Configuration

Belt width directly affects capacity and material adaptability. ZOOMRY offers 1400-1800mm options with anti-deviation design for 0-400mm materials:

III. Power System

For diverse global energy infrastructures, ZOOMRY's modular power architecture ensures seamless adaptation through energy flexibility and efficiency optimization.

Electric Drive Solutions

For stable power supply scenarios:

• Euro/Asia-Africa Edition
  380V/50Hz with ±15% voltage compensation, EN 60204-1 certified.

• North America Edition
  460V/60Hz with NEMA 4X enclosure and phase balancer (<5% imbalance), UL 508A compliant.

• Custom Interfaces
  Extendable to 660V/50Hz (AS/NZS 3000) or 1140V/50Hz (GB 5226.1), supporting renewable microgrid integration.

IV. Dual-Power Solutions

For unstable/off-grid scenarios, ZOOMRY's hybrid system passes ISO 8528-5 transient response tests:

• Power Units: Volvo D13 (510hp) or Cummins QSK19 (2500N·m peak torque) options
• Seamless Switching: FPGA-controlled with ≤5% torque fluctuation (industry average 15%)
• Protection: Triple filtration (cyclone+oil bath+paper) for 500hr maintenance-free operation in sandstorms

V. Structural Design

Chassis Options

• Wheeled: 16PR tires with ≤8m turning radius for paved areas
• Crawler: <70kPa ground pressure for loose material yards

Receiving Hopper

Three-stage optimized design:

1. Grizzly screen (50-200mm adjustable spacing)
2. Anti-splash chute (patented flow angles)
3. Polyurethane sealing (<5mg/m³ dust emission)

Smart Power Management

Featuring PowerOptima 3.0 system:

• Dynamic load adjustment (±2% precision)
• Multi-source coordination (<200ms response)
• Carbon footprint tracking (ISO 14064-2 compliant)

VI. Environmental Adaptability

Design optimizations for various climates:

VII. Safety System

Five-tier protection:

1. Mechanical: Emergency stops + Guardrails
2. Electrical: <0.1s leakage protection
3. Process: Laser collision avoidance
4. Environment: Methane/dust monitoring
5. Emergency: Hydraulic fail-safe device

VIII. Maintenance Costs

Value engineering analysis shows ZOOMRY's advantages over 10 years:

IX. Special Features

Modular options include:

• Magnetic separator (≥98% metal removal)
• On-board weighing (0.5% accuracy)
• Auto-lubrication (2000hr intervals)
• Solar assist (23-35% carbon reduction)

X. Compliance Certifications

All equipment carries:

• CE (2006/42/EC)
• EAC (TR CU 010/2011)
• IECEx (Zone 22)
• South Africa NRCS

In bulk material system upgrades, truck unloader selection represents both technical and strategic decisions. As an EPC provider with CE/EAC certifications and 50+ global projects, ZOOMRY delivers rapid 72-hour solutions, digital twin simulations, and six-continent spare parts support, backed by an industry-leading 15-year warranty. Access model selection reports via our website or contact our engineering team (+86-13164016717) with 10+ years' experience to integrate precise, reliable and sustainable solutions into your material handling systems.
