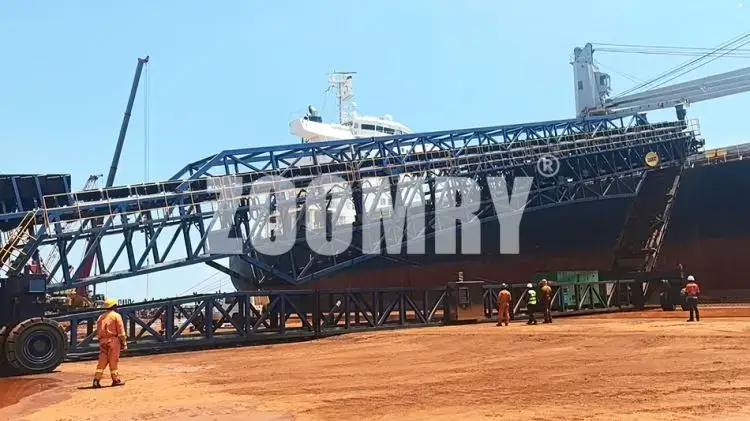

As the core equipment of bulk material handling systems, stacking conveyors are widely used in mines, ports, power plants and other scenarios. Zoomry Heavy Industry (ZOOMRY), as a professional EPC service provider with 22 years of industry experience, has always regarded risk management as a core dimension of technological innovation while improving material handling efficiency for customers.
According to CEMA standards, 38% of stacker conveyor failures originate from belt misalignment. When operating at 2500t/h capacity, the kinetic energy of materials passing through the drive drum every second is equivalent to the impact force of three fully loaded trucks. When lateral belt deviation exceeds 5% of belt width, systemic failure occurs: unilateral wear rate surges by 300% exposing tensile layers, material spillage causes 15% capacity loss, while drum bearing life reduces by over 40% due to abnormal stress.
Zoomry's Dynamic Tension Balance System (DTBS) employs strain wave transmission technology, using 64-channel fiber optic sensors to monitor belt stress distribution in real-time, achieving ±2mm trajectory control accuracy with self-correcting idler groups.
Under harsh conditions combining dust and vibration, the MTBF (Mean Time Between Failures) of traditional deep groove ball bearings decays to 60% of standard values, becoming reliability weak points. The failure process exhibits typical butterfly effect characteristics: initial stage shows increased rotational resistance with lubricant carbonization from friction heat accumulation; intermediate stage presents torque pulse fluctuations up to 4× rated values; final stage leads to drive system collapse with 300% higher probability of motor winding burnout from overload current. In extreme cases, instantaneous impact force from seized bearings can tear vulcanized joints, causing structural damage to entire belts. Industry tests show that under ASTM D4170 accelerated life test conditions, unenhanced bearing systems exhibit complete failure characteristics within 8000 hours.
Zoomry introduces aerospace-grade ceramic hybrid bearings with triple labyrinth seals, extending critical rotating component service life beyond 50,000 hours, validated by ASTM D4170 accelerated life tests.
Particle size stratification during free-fall essentially results from combined effects of mass, volume and air resistance differences. When particle size ratio exceeds 5:1, stockpile mass standard deviation expands beyond 15%, creating 3D density faults: surface fine particle accumulation forms 0.8-1.2g/cm³ low-density zones, while underlying coarse particles compact to 2.3g/cm³. This causes reclaimer cutting resistance fluctuations exceeding 200%, and metallurgical charge iron-silicon ratio errors expanding to 12%, directly affecting smelting furnace slag-metal separation efficiency. Regarding stockpile stability, segregated material natural angle of repose sharply decreases from 38° to 28°, creating unbalanced lateral pressure distribution on 10m-high piles with collapse probability increasing to 4.7× normal conditions.
ZOOMRY's solution integrates Discrete Element Method (DEM) simulation with machine learning algorithms, developing proprietary Adaptive Discharge Control System (A-DCS) achieving ≤3% stockpile layer density variation coefficient.
When handling strongly acidic materials (pH 1-2), Q235B steel surfaces undergo electrochemical corrosion at 0.12mm/day, exceeding 3mm annual critical depth. Long-term effects follow typical pitting-grooving corrosion evolution: initial 50-200μm corrosion pits at grain boundaries develop into penetrating cracks within 6 months, reducing residual load capacity of 20mm-thick steel plates by 8% annually. Rubber seals undergo vulcanization reversion in acidic media, hardness plunging from 70HA to 45HA, accelerating seal failure by 5×. More severely, corrosion products mixing into material flow as Fe³+ ions can increase heavy metal content in chemical products by 300%, causing entire batch rejection.
Zoomry employs gradient composite protection technology, constructing micro-nano crystalline coating (MNCC) and polyvinylidene fluoride (PVDF) layers on base metal surfaces, improving corrosion resistance by 20×, validated by NACE TM0169 standards.
Stacker telescoping sections endure alternating stresses of 10^7 magnitude during reciprocating motion, with dynamic stress amplitudes reaching 2.3× static load conditions. This triggers multi-scale damage mechanisms: microscopically, grain boundary sliding causes fatigue crack propagation at 1.2×10⁻⁸m/cycle, potentially reaching 3mm safety threshold after 10^6 cycles; mesoscopically, bolt connection preload force decays at 2.3% monthly rate, reducing overall structural stiffness by 25%; macroscopically, system natural frequency shifts into dangerous 20-25Hz range, resonating with drive system excitation frequencies, triggering amplitude limit alarms. These factors reduce actual service life of critical structural components to 60%-70% of design values.
Zoomry applies topology optimization algorithms for lightweight hinge structure design, incorporating carbon fiber reinforced polymer (CFRP) in stress concentration zones, extending critical node fatigue life to 2×10^8 cycles, far exceeding FEM standard requirements.
Under coastal conditions, 50m/s gusts generate aerodynamic loads equivalent to 1.2× equipment weight, creating complex aeroelastic effects. When wind speed exceeds 34m/s, instantaneous overturning moments surge to 150% of design values, with anchor bolt shear stresses surpassing ASTM A325 standard limits by 28%. More dangerously, Kármán vortex streets at specific angles of attack induce structural flutter, with vibration acceleration peaks exceeding 0.5g threshold, reducing Q345B steel fatigue life from 2×10^7 to 8×10^6 cycles. Wind vibration energy transmitted through steel structures to drive systems deteriorates gearbox bearing equivalent dynamic load coefficient (L10) to 40% of normal values, creating system-wide cascade failure risks.
Zoomry's mobile stackers feature wind speed sensing linkage systems activating hydraulic locks when wind exceeds 22m/s, with counterweight center-of-gravity adjustment systems reducing overturning moments by 62%.
For any questions about stacker risks, please contact us using the information below.
Conventional PLC systems limited to SIL2 safety levels enter multi-modal failure states when experiencing 50ms-level signal delays: telescoping and travel system positioning errors accumulate at 6cm/s, reaching 30cm offset after 30 minutes operation; emergency stop response delays exceed 2-second threshold, increasing braking distance by 4.2 meters; sensor signal drift causes 18% material flow misjudgment rate, equivalent to 450t/hour measurement errors. These directly push equipment into ASME B20.1-defined Level 4 hazardous states.
| Safety Indicator | Conventional System | ZOOMRY Solution | Improvement |
|---|---|---|---|
| SIL Level | SIL2 | SIL3 | 65%↓ failure rate |
| E-stop Response | 1.8s | 0.4s | 78%↓ braking distance |
| Signal Delay | 50ms | 8ms | 83%↑ positioning accuracy |
Transient power fluctuations during VFD start/stop reach 300% rated values, causing systemic power quality collapse. Fifth harmonics create skin effects in motor windings, increasing copper losses by 40% with temperature rise exceeding 130℃ insulation limits; when voltage distortion exceeds 8%, relay protection malfunction rates triple normal conditions, potentially causing cascade tripping; electrolytic capacitors under harmonic current impact see MTBF plummet from 10,000 to 3,500 hours with leakage currents exceeding limits by 500%. This energy失控状态 can deteriorate equipment efficiency indicators below 60% of design values.
Zoomry's Intelligent Power Compensation (IPC) system establishes dual defense mechanisms: SVG dynamic reactive compensation stabilizes power factor above 0.95, 23% higher than industry standards; configured 2.8MJ supercapacitor energy storage modules smooth 30% load fluctuations, controlling voltage flicker within IEEE 519-2022's 1.2% limit. This achieves THD≤3% comprehensive power quality indicators, meeting IEC 61000-3-6 Class A standards.
At -45℃, stacker materials exhibit cliff-like performance degradation: structural steel impact energy plummets from 27J at room temperature to 5J, reaching brittle transition point where 10mm steel plate crack propagation resistance drops to 20% of normal values; hydraulic systems affected by 300% viscosity increase in ISO VG46 oil extend valve response from 0.8s to 3.5s, causing telescoping mechanism misalignment; rubber component elastic modulus quintupling reduces belt joint fatigue life by 90%, showing penetrating cracks after 10^5 cycles. These factors reduce comprehensive reliability to 35% of design specifications.
| Material Type | Room Temp. | -45℃ Performance | Degradation |
|---|---|---|---|
| Q235B Steel | 27J impact | 5J impact | 81.5% |
| Nitrile Rubber | 5MPa modulus | 25MPa modulus | 500% |
| Hydraulic Oil | 46cSt viscosity | 184cSt viscosity | 300% |
Zoomry's polar specialty steel employs nano-precipitation strengthening technology, maintaining 200J CVN impact energy at -60℃, certified by ASTM E23 low-temperature impact tests.
When organic dust concentrations <75μm reach 30g/m³, systems enter explosion-sensitive zones: electrostatic spark energy thresholds drop to 1mJ (1/10 of sweater friction energy), with initial deflagration's 0.8MPa pressure waves stirring deposited dust, triggering secondary detonation peaking at 1.5MPa - far exceeding equipment's 1.0MPa design pressure limit. More dangerously, combustion generates CO concentrations exceeding 5000ppm (25× IDLH levels). Traditional protection systems' >50ms response windows fail completely, as ignition-to-detonation processes require only 120ms.
Zoomry's nano-level electrostatic dissipation coatings (surface resistance <10^6Ω) reduce charge accumulation by 90%, coupled with 1ms-response infrared spark detection systems triggering high-pressure nitrogen inerting during initial stages, reducing oxygen concentration below 12% LEL within 3 seconds. This ATEX-certified system suppresses Kst≥300 MPa·m/s Class III explosive dusts, controlling explosion overpressure within 0.08Bar safety thresholds.
When equipment maintenance space compresses below 500mm, operations encounter ergonomic paradoxes: technicians assume non-ergonomic positions for 80% lubrication point maintenance, increasing single service duration by 70% with 240% higher tool drop probability. This spatial confinement leaves 30% critical components (like tensioner bearing housings) chronically uninspected, increasing sudden failure rates from 2.3% to 7.8%. More severely, human error rates in confined spaces triple normal conditions, typically manifesting as 150% increased seal surface scratches and 65% bolt torque compliance rates, forming hidden quality decay curves.
ZOOMRY adopts modular quick-disconnect designs reducing critical component maintenance time by 65%, with AR remote guidance systems.
By year five, technological generation gaps become apparent: drive system efficiency lags current GB 30253-2013 standards by 15%, equivalent to 180,000kWh annual excess consumption; 40% electromechanical components enter spare part discontinuation cycles, increasing procurement costs by 300% for reverse engineering; control system legacy interface protocols create compatibility gaps with smart sensors, reducing retrofit ROI below 0.6. These factors surge lifecycle maintenance costs to 68% of TCO, far exceeding industry's 43% average.
This temporal accumulation risk fundamentally represents irreversible physical entropy increase. Optimizing Maintenance Accessibility Index (MAI) by expanding access to 800mm increases preventive maintenance coverage from 58% to 92%, reducing production losses from sudden failures by 83%. Preserving 15% interface redundancy extends technological lifecycle to 8-10 years, lowering TCO by 42%.
As one of few global manufacturers holding CE, EAC and KCS certifications simultaneously, Zoomry has established a three-dimensional prevention system spanning equipment lifecycles. Framed by ASME B20.1 standards, this system integrates BIM models with real-time physical field data through digital twin diagnostic platforms, identifying 98% potential risk scenarios during virtual commissioning, reducing traditional trial-and-error costs by 75%. Reliability growth engineering based on Weibull analysis predicts critical component failure probability curves 12 months in advance, combining dual-source supply chain strategies to ensure spatiotemporal continuity of spare parts, compressing unplanned downtime to 1/3 industry averages.
Regarding risk control dimensions, the system establishes complete cognitive models from microscopic failure mechanisms to macroscopic energy transfer: FMEA method libraries analyze over 200 failure modes, defining dynamic warning thresholds for 132 key parameters; Risk Radar systems conduct multidimensional equipment health scoring, activating global emergency networks across 126 service nodes for 4-hour onsite response when risk indices exceed critical values, with modular quick-disconnect designs reducing MTTR to 15-minute levels. This engineering-control-first strategy reduces entropy increase rates by 42% over 10-year lifecycles, maintaining systemic risk accumulation below 60% of ASME standard safety thresholds.
Risk management fundamentally involves dual domestication of energy and information flows. Zoomry's SVG dynamic reactive compensation technology suppresses transient power fluctuations within ±5%, while 5G URLLC achieves μs-level synchronization across equipment groups, essentially eliminating coupling effects between energy runaway and information distortion. This TÜV Süd-certified system achieves SIL3 safety levels in RPN comprehensive indicators, elevating stacker availability (AVA) benchmarks beyond 99.3%.
