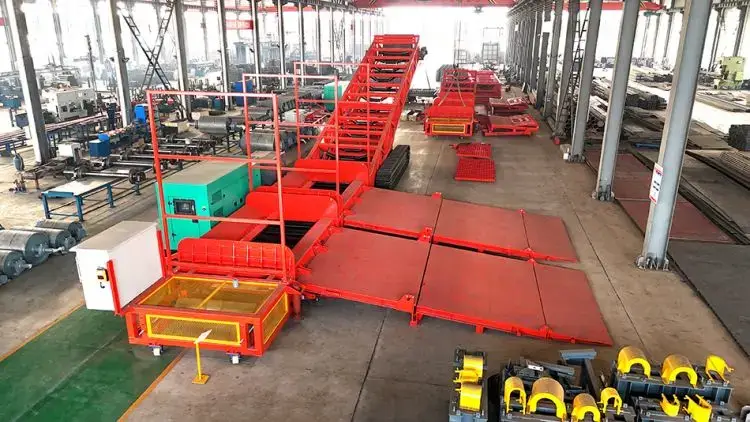

Automated Truck Unloader Bulk Material Handling Process

The automated truck unloader serves as the critical hub in modern bulk material handling systems. Through its intelligent four-phase workflow—precise positioning, sealed unloading, dynamic conveying, and smart stacking—it achieves high-efficiency operations. Zoomry’s ZRLS/ZRLD series adopts modular designs, meeting core demands across mining, port, and other scenarios for 1,800 tph throughput, ±5 cm positioning accuracy, and enclosed dust suppression.

I. In-Depth Analysis of Core Technical Workflow

Phase 1: Precision Vehicle Positioning

Zoomry’s truck unloader integrates LiDAR and machine vision to generate real-time 3D point cloud models as trucks enter the work zone. Guided by a 12.1% gentle slope (6.7° incline) and directional indicators, vehicles position themselves at the V-shaped hopper centerline with ±5 cm accuracy. Dual/four-lane parallel designs significantly enhance throughput efficiency.

Phase 2: Sealed Unloading & Dust Control

When truck beds elevate, 4.8-meter-deep V-hoppers deploy anti-splash grilles as physical barriers. Polyurethane sealing skirts and bottom damping plates collaboratively capture suspended particles ≤2μm, suppressing dust diffusion. The unloading zone features negative-pressure extraction, ensuring ISO 14001 compliance.

Phase 3: Adaptive Conveying Control

Key belt conveyors integrate load cells and radar material scanners. If instantaneous flow exceeds 115% capacity, PLC controllers reduce belt speed from 3.5 m/s to 3.1 m/s within 0.8 seconds. Under light loads, speeds increase to 4.0 m/s to save energy. Overloads trigger 10% speed reduction and audible-visual alarms, while empty segments optimize energy use with 15% acceleration.

Phase 4: Intelligent Stockpiling Coordination

Via industrial 5G modules, the truck unloader exchanges material-level data with Zoomry’s ZR-SF series telescopic stacker. Systems autonomously plan stacking paths using 3D yard models to prevent segregation and maximize space utilization.

II. Technical Advantages of Zoomry’s Truck Unloader

Hydraulic Synergy Drive System

• Dual 22kW independent hydraulics drive hopper gates and conveyor lifts
• Power-failure hydraulic locks engage safety brakes in 0.01 seconds
• Support leg cylinder precision: ±0.5mm stroke

Dynamic Safety Protection

• Dual mechanical limiters activate during cable breakage
• Three-tier belt misalignment alerts (2%/5%/8% deviation thresholds)
• Emergency braking response <1.5 seconds

Modular Maintenance Architecture

• Quick-release idlers enable 15-minute replacements
• 50,000-hour maintenance-free drum design
• Centralized greasing system reduces manual upkeep by 80%

III. Zoomry Truck Unloader Selection Guide

Critical parameters for equipment selection:

For rainy regions, add hydraulic anti-slip grilles; dust-sensitive areas require dual-stage mist cannons. All units undergo 72-hour continuous load tests before shipment, ensuring CE/EAC dual certification compliance.

IV. Why Choose Zoomry

Full-Chain Technical Capability

• 60+ testing instruments validate quality from idlers to complete units
• Self-manufactured drums, scrapers, and other critical components eliminate supply chain risks

Globalized Engineering Expertise

• Project database spanning 46 countries enables localized solutions
• Performance verified in Arctic cold (-45°C) and equatorial heat (55°C)

Lifecycle Support

• 72-hour standardized operator training
• Optional digital twin system for predictive maintenance
• 10+ years of critical spare parts inventory
